Good quality Roof Mounted Industrial Water Evaporative Air Cooler

Brand:
AOSUA
Place of Origin:
Zhejiang, China (Mainland)
  • Mr. Catherine Zhou

Basic Info

Model No.: /

Product Description

Product Description Working principle Aosua evaporative coolers is one of the longest history home appliance, even elder than air conditioner.It is called desert cooler in Middle East,and also is called swamp cooler in US. The frame of evaporative cooler is very simple.Water from the bottom pan of the unit is pumped to the top and allowed to flow down over the evaporation cooling pads of the spot cooler,evenly saturating the pads,Then, a powerful blower pulls air through the pads,forcing the water to evaporate which lowers the ambient temperature.The cooler air is then blown by the unit at a high velocity where you direct the cool air to go.
DATA SHEET OF Ceiling Mounted Evaporative Cooler
18000m³/h,22000m³/h
Model
ALFJ-18F/22F
ALFJ-18D/22D
ALFJ-18E/22E
Dimension(mm)
1100*1100*950
1160*1160*960
1150*1150*960
Vent size(mm)
670*670
670*670
670*670
Air flow(m³/h)
18000/22000
18000/22000
18000/22000
Blowing distance(m)
32
32
32
Blowing way
Top/side/down
Top/side/down
Top/down
Power(kw)
1.1/1.5
1.1/1.5
1.1/1.5
Cover area(㎡)
80-120
80-120
80-120
Net Weight(kg)
55
55
55
Gross Weight(kg)
80
80
80
28000m³/h,35000m³/h,50000m³/h
Model
ALFJ-25F
ALFJ-30F
ALFJ-50F
Dimension(mm)
1100*1100*1150
1300*1300*1200
1500*1500*1430
Vent size(mm)
670*670
800*800
900*900
Air flow(m³/h)
28000
35000
50000
Blowing distance(m)
45
60
100
Blowing way
Top/down
Top/down
Top/down
Power(kw)
2.2
3
5.5
Cover area(㎡)
100-150
200-250
300-500
Net Weight(kg)
60
100
120
Gross Weight(kg)
85
150
170

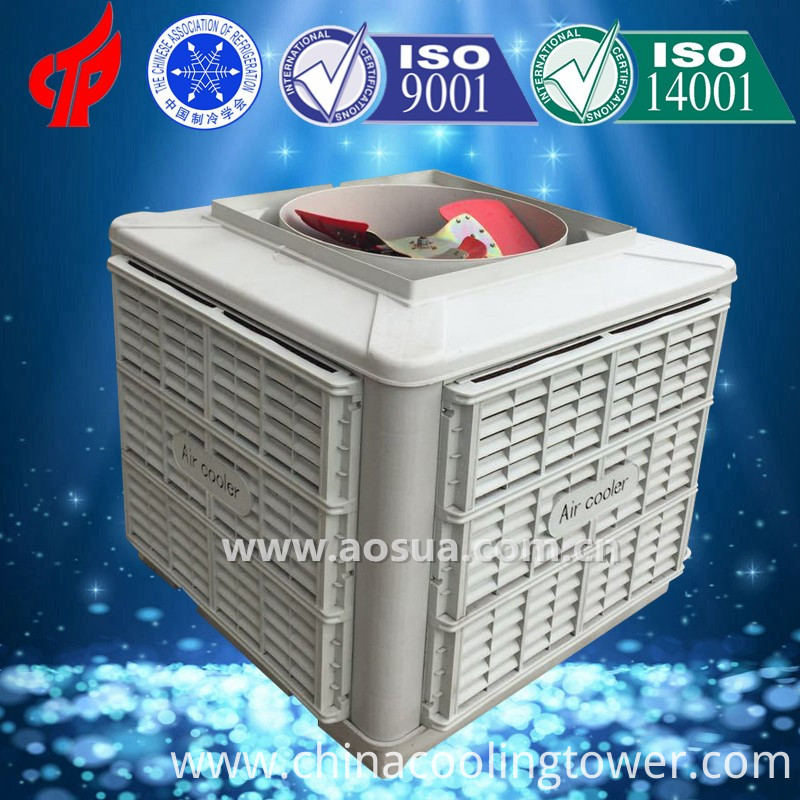

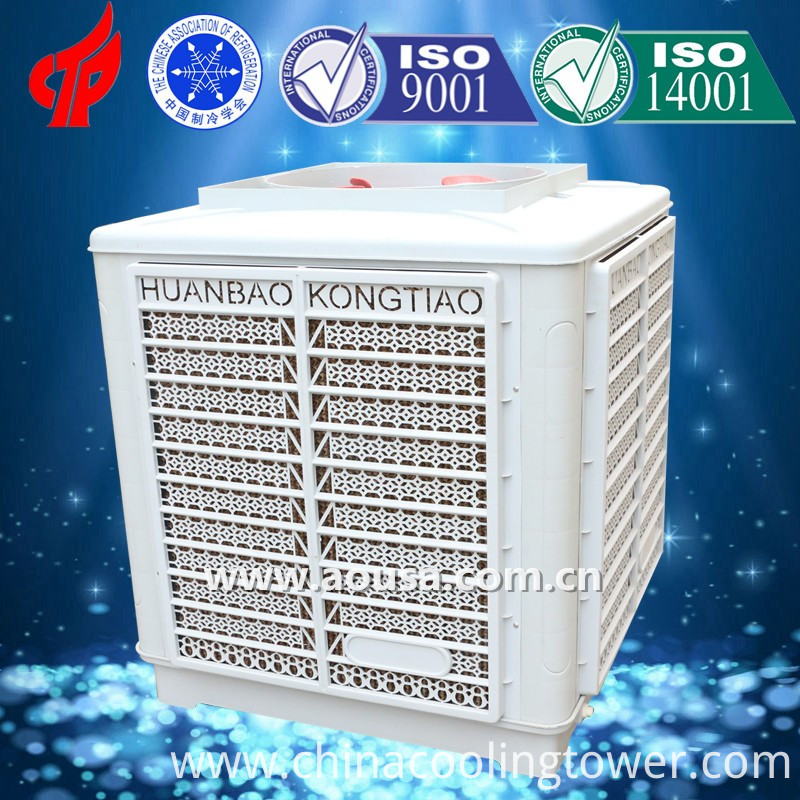

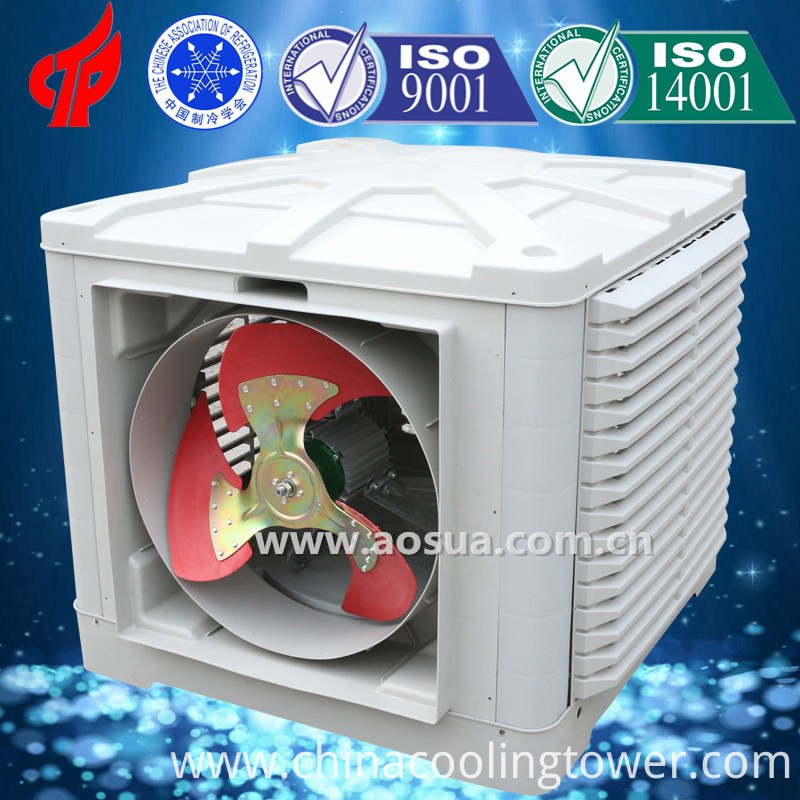

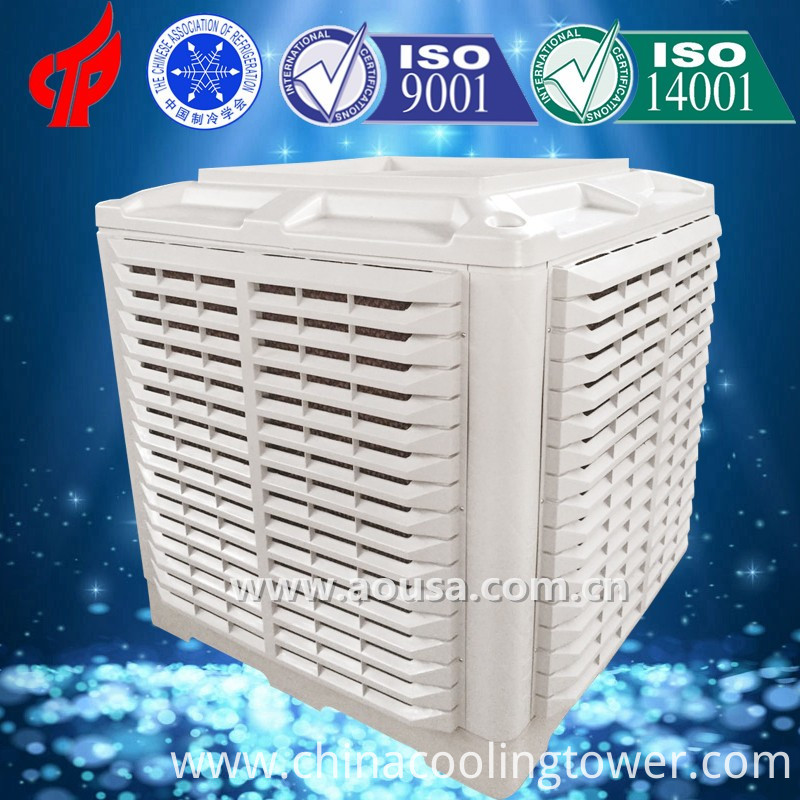

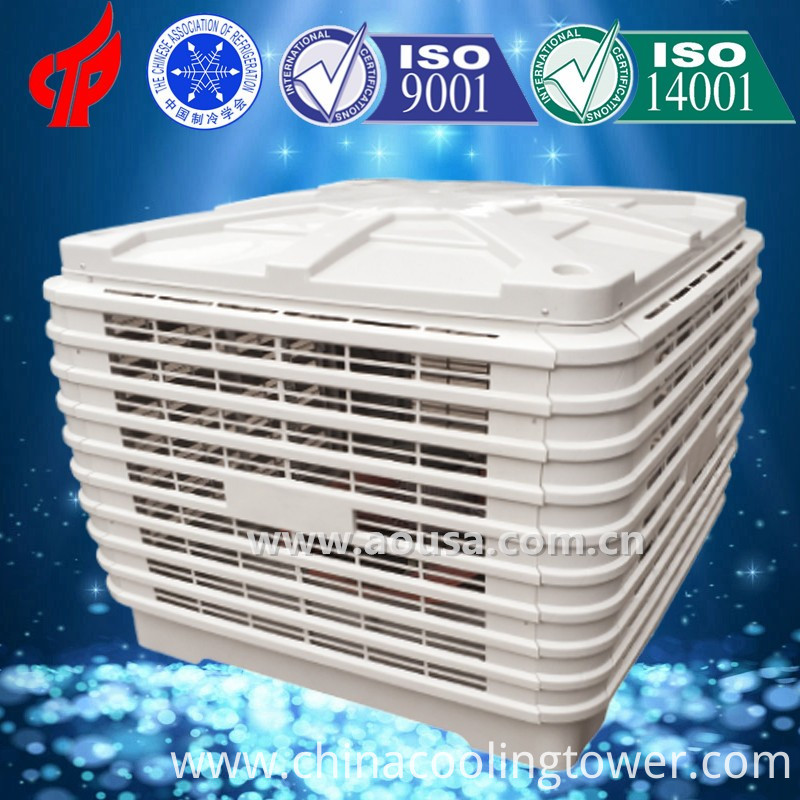

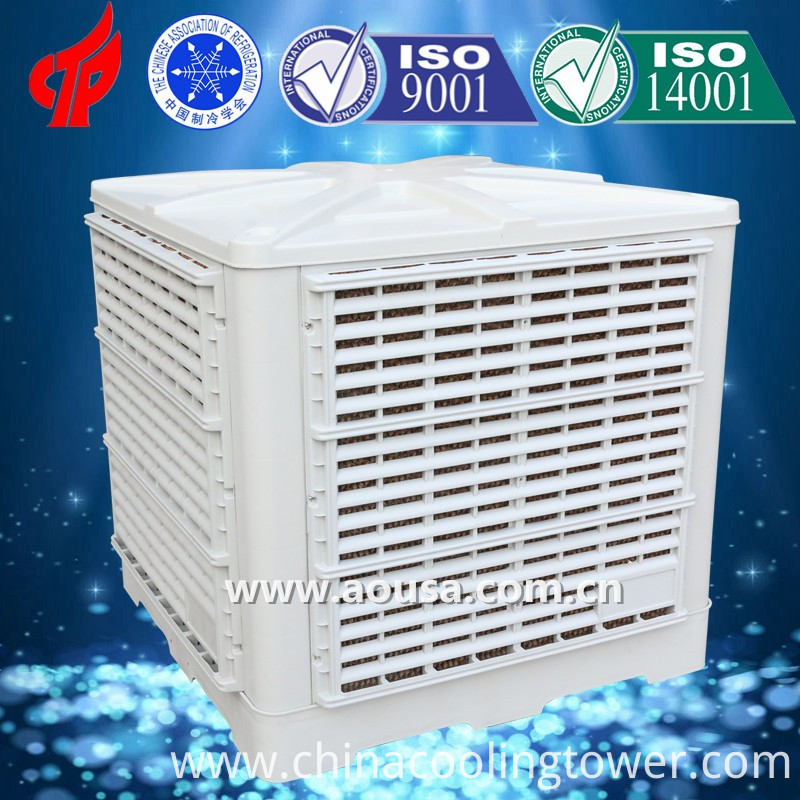

ALFJ-18F/22F [Top discharge] 18000m³/h &22000m³/h
ALFJ-18D/22D [Side discharge]
18000m³/h &22000m³/h

ALFJ-18E/22E [Down discharge]
18000m³/h &22000m³/h
ALFJ-25F [Top discharge]
28000m³/h
ALFJ-30F [Down discharge]
30000m³/h
ALFJ-50F [Top discharge]
50000m³/h
Main Features 1) Double fan speeds,Top/Down/Side discharge for option.  2) Elegant cabinet design with brand new update PP material,anti-UV,anti-corrosion,anti-aging,anti-deformation. 3) Copper motor adopts high quality fully sealed alloy shell design,good heat dissipation,low temperature,high protection. 4) Professional 4 blades fan,lower noise greater wind. 5) Open-water distributor design,water flows evenly and smooth. 6)100mm and 120mm thickness high performance evaporative cooling pad for option,good cooling effect,easy to clean. 7)Automatic water control system,automatic reminder when lack of water. Certifications Detailed Images Air cooler motor Name:Motor
Brand:AOSUA
Original: China
High quality sealed aluminum motor.Water proof and good heat dissipation performance. Air cooler fan
Name:Fan
Brand:AOSUA
Original: China
The fan using nickel-plating petiole with strong blade,resistant to break and large air volume.
Air cooler fan speed controller
Name:Fan speed controller
Brand:AOSUA
Original: China
Acrylic superhard big-screen LCD display.
Automatic cleaning time can be set freely.
Timing on/off.
Water shortage alarm.
Air cooler cellulous pad
Name:Cellulous pad
Brand:AOSUA
Original: China
Using high density water paper.It have advantage of heighten water-absorbing capacity,fast cooling,fine workmanship,no burr and watertight.
Our Service Pre-Sales Service * Inquiry and consulting support.  * Design scheme support.  * View our Factory. After-Sales Service
* Porvide install photo or video if necessary.  * Engineers available to service machinery overseas. * Long warranty period Packing & Delivery Production Exhibition

Contact us if you need more details on High Quality Evaporative Air Water Cooler. We are ready to answer your questions on packaging, logistics, certification or any other aspects about Ventilation Air Cooler、Evaporative Cooler Cooler. If these products fail to match your need, please contact us and we would like to provide relevant information.
