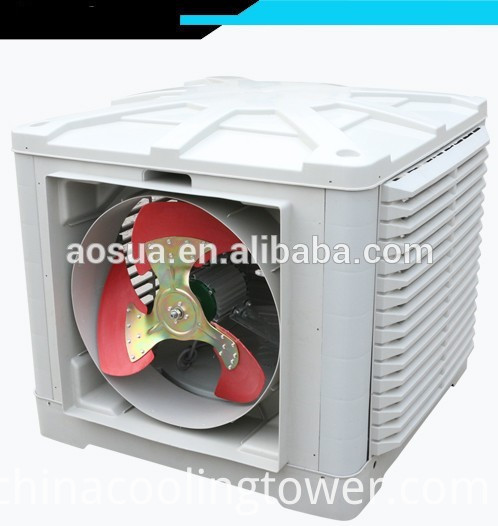

AOSUA Industrial Cooling System Side Discharge Evaporative Air Cooler

Basic Info

Model No.: ALFJ-18DB

Product Description

Product Description Working principle Aosua evaporative coolers is one of the longest history home appliance, even elder than Air Conditioner.It is called desert cooler in Middle East,and also is called swamp cooler in US. The frame of evaporative cooler is very simple.Water from the bottom pan of the unit is pumped to the top and allowed to flow down over the evaporation cooling pads of the spot cooler,evenly saturating the pads,Then, a powerful blower pulls air through the pads,forcing the water to evaporate which lowers the ambient temperature.The cooler air is then blown by the unit at a high velocity where you direct the cool air to go.
SPECIFICATIONS FOR Roof Mounted Down Discharge Industrial Air Cooler
1.
Dimension
mm
1160*1160*960
2.
Vent size
mm
670*670
3.
Air flow
m³/h
18000
4.
Blowing distance
m
32
5.
Power
kw
1.1
6.
Cover area
80-120
7.
Net Weight
kg
55
8.
Gross Weight
kg
80
9.
Blowing way
Side discharge
10.
Transmission case
Single Speed/Frequency Control
Main Features 1) Double fan speeds,Top/Down/Side discharge for option.  2) Elegant cabinet design with brand new update PP material,anti-UV,anti-corrosion,anti-aging,anti-deformation. 3) Copper motor adopts high quality fully sealed alloy shell design,good heat dissipation,low temperature,high protection. 4) Professional 6 blades fan,lower noise greater wind. 5) Open-water distributor design,water flows evenly and smooth. 6)100mm and 120mm thickness high performance evaporative cooling pad for option,good cooling effect,easy to clean. 7)Automatic water control system,automatic reminder when lack of water. Certifications Detailed Images Air cooler motor Name:Motor
Brand:AOSUA
Original: China
High quality sealed aluminum motor.Water proof and good heat dissipation performance. Air cooler fan
Name:Fan
Brand:AOSUA
Original: China
The fan using nickel-plating petiole with strong blade,resistant to break and large air volume.
Air cooler fan speed controller
Name:Fan speed controller
Brand:AOSUA
Original: China
Acrylic superhard big-screen LCD display.
Automatic cleaning time can be set freely.
Timing on/off.
Water shortage alarm.
Air cooler cellulous pad
Name:Cellulous pad
Brand:AOSUA
Original: China
Using high density water paper.It have advantage of heighten water-absorbing capacity,fast cooling,fine workmanship,no burr and watertight.
Our Service Pre-Sales Service * Inquiry and consulting support.  * Design scheme support.  * View our Factory. After-Sales Service
* Porvide install photo or video if necessary.  * Engineers available to service machinery overseas. * Long warranty period Packing & Delivery Production Exhibition
