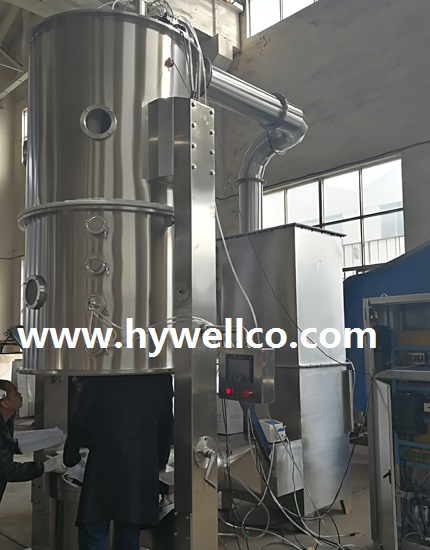

Vertical Fluid Drying Equipment

  • Vertical Fluid Drying Equipment
  • Vertical Fluid Drying Equipment
  • Vertical Fluid Drying Equipment
  • Vertical Fluid Drying Equipment

Vertical Fluid Drying Equipment

    Unit Price: USD 19000.00 - 4100.00 / Set/Sets
    Payment Type: L/C,T/T,Western Union
    Terms of Trade: FOB
    Min. Order: 1 Set/Sets
    Delivery Time: 40 Days
    Packaging: Wood Box
    Productivity: 10-20 Set per Year
    Brand: Hywell
    Transportation: Ocean
    Place of Origin: China
    Supply Ability: 3-5 SetSets per Month
    Certificate: ISO CE
    HS Code: 8419399090
    Port: Shanghai

Basic Info

Model No.: FG

Type: Dryer

Customized: Customized

Fluid Bed Dryer For Powder: Fluid Bed Dryer For Granule

Product Description

Vertical Fluid Drying Equipment


1. Vertical Fluid Drying Equipment made by all stainless steel.

2. Vertical Fluid Drying Equipment reach GMP

3. Vertical Fluid Drying Equipment is Fluid Dryer

4. Vertical Fluid Drying Equipment is Fagopyrum tataricum Fluid Dryer

5. Vertical Fluid Drying Equipment is Fluid Bed Dryer For Granule

Structures
1. INLET AHU
The inlet AHU consists of Primary filter(G4), Post filter (F8), high efficiencyfilter(H13 )and heater with accurate temperature control. The inlet air flow,speed and pressure is variable and controllable. For the heater , it can besteam radiator ,electrical heater , gas furnace and so on .
2. MAIN BODY STRUCTURE
The main body structure consists of bottom bowl, movable product bowl withtrolley , fluidized chamber, expansion chamber/filter housing. The bottom bowl,product container and fluidized chamber are inflatable silicon gasket sealedwith compress air inspection sensor to assure the reliable sealing.
3. PRODUCT FILTER
The double structured bag filter in two pieces (in case request, stainlesssteel filter available) is inflatable silicon gasket sealed between theexpansion chamber inner surfaces with compress air inspection sensor to assurethe reliable sealing. A dust sensor is mounted on the exhaust piping andinterlocked from control sys to secure the product safety during processingstage.
4. EXHAUST AHU
The exhaust dust collection filter is optionally designed for protectenvironment.


Vertical Fluid Drying Equipment Characteristics

☆ Fluid bed to achieve fast heat transmission of medium

☆ Seal negative pressure operation, there is no dust

☆ Because of using anti-static material as filter, it is safe in operation

☆ The equipment has no dead corner so it is easy to clean fully and there is no cross pollution


Fluid Bed Dryer For Powder Applications

Vertical Fluid Drying Equipment is main used for drying powder or granules from pharmaceutical, foodstuff, chemical and other industries

Item

Unit

3

5

30

60

120

200

300

500

Container of raw material

diameter

Mm

300

400

700

950

1200

1400

1600

1800

volume

L

12

22

100

220

420

670

1000

1500

capacity

min

Kg/batch

1.5

4

15

30

80

100

150

250

max

Kg/batch

4

6

36

72

140

240

360

600

fan

power

Kw

2.2

4

5.5

11

18.5

22

30

45

Steam consumption

Kg/batch

12

23

70

140

211

282

366

465

Compressed air

M3/min

0.3

0.3

0.3

0.6

0.6

0.9

1.1

1.6

Temperature

Room temperature to 120℃

Collect rate

%

≥99

Content of final moisture

%

0.2

Noise

dB

≤75dB(A) (main machine is separated from fan)

Height of main machine

Mm

2200

2400

2800

3000

3300

3800

4000

4600

Fluid Dryer

  • 1
  • 2
  • 3
  • 4
  • 5
