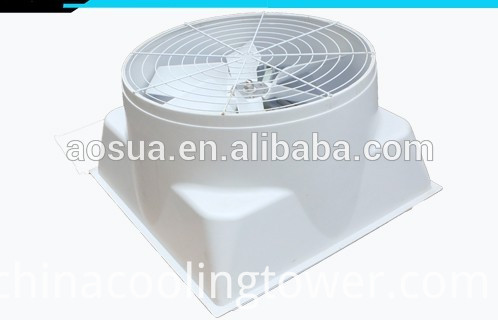

1060 Wall Mounted Spray Painting Room Axial Flow Fan Wholesale

Basic Info

Model No.: AFYB-106

Product Description

Product Description
Axial Flow Fan discharging air to make indoor air pressure drop, indoor air getting thinner and form a negative pressure zone.The air into the indoor because of differential pressure. In the practical application in industrial workshop, Axial flow fan installed in the factory side, air inlet on the other side of the plant room.Then it formed a negative pressure zone between Axial flow fan and air inlet. In the process, the doors and Windows near the Axial flow fan keep closed and forcing air into from air inlet doors and Windows to workshop. Air lined up then orderly by the air inlet into the workshop and through the workshop, finally,the Axial flow fan discharge air from workshop. Thoroughly, efficient ventilation and air change rate can be as high as 99%. Through specific engineering design and according to the need for air speed and wind speed and no heat, dust and harmful gases, smoke quickly discharge from workshop.Any problem of poor ventilation can completely solve once only. From the open fan ventilation could be achieved within a few seconds.
SPECIFICATIONS FOR AFYB-106 AXIAL FlOW FAN
1
Model
AFYB-106
2
Dimension
mm
1060*1060*550
3
Vent size
mm
900
4
Fan Diameter
mm
850
5
Blade No
6
6
Air flow
m³/h
32000
7
Power
KW
0.55
8
Speed
rpm
550
9
Voltage
v/Hz/phase
380/50/3
10
Noise
dB
<55
11
Weight
Kg
50
12
Cover Area
90-120
Main Features 1)Perfect Effect:Axial flow fan can improve the indoor environment and oxygen content in large area.
2)Good Quality: Axial flow fan using Negative Pressure Fan dedicated motor with good quality and stable.
3)Easy and convenient:Axial flow fan easy to install,operate and low maintenance.
4)Environmental protection:Axial flow fan have no pollution,low noise and will not cause environmental pollution.
5)Low Noise:Axial flow fan structure has the function that reduce noise and air volume is greater than the other relevant fan equipment.
Certifications Detailed Images Louver The louver is folding type and easy to maintenance Motor Class F insulation system,IP54 protective class,waterproof and dust proof.

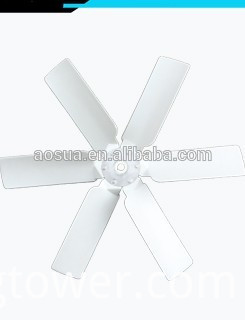

FRP Fan Glass filament fiber have advantage of high corrosion resistance,long service life and no metal resonance.
Our Service Pre-Sales Service * Inquiry and consulting support.  * View our Factory. After-Sales Service
* Training how to instal the machine, training how to use the machine.  * Engineers available to service machinery overseas. Packing & Delivery Project Case Exhibition

Contact us if you need more details on Axial Flow Fan. We are ready to answer your questions on packaging, logistics, certification or any other aspects about Wholesale Frp FanWall Mounted Fan. If these products fail to match your need, please contact us and we would like to provide relevant information.
