Purple potato silk mesh belt dryer

  • Purple potato silk mesh belt dryer
  • Purple potato silk mesh belt dryer
  • Purple potato silk mesh belt dryer

Purple potato silk mesh belt dryer

    Payment Type: L/C,T/T
    Terms of Trade: FOB,CFR,CIF
    Min. Order: 1 Set/Sets
    Delivery Time: 45 Days
    Packaging: Plywood Cases
    Productivity: 10-2000kg/h
    Brand: jiafa
    Transportation: Ocean,Land,Air
    Place of Origin: China
    Supply Ability: 2sets/Month
    Certificate: CE
    HS Code: 84193990
    Port: Shanghai Port,Tianjing Port,Ninbo Port

Basic Info

Model No.: DW

Type: Preparation Machinery

Finished Dosage Form: Granules

Precision: High Precision

Certification: CE, GMP, ISO, SGS

Computerized: Non-Computerized

Customized: Customized

Condition: New

Warranty: 2 Year

Mesh Belt Dryer: Mesh Belt Tunnel Dryer

Numbers Of Units: 4-5

(Bo)Belt Width: 1.2-2m

(Ao)Drying Length: 8-10m

Applied Temperature: 50-140℃

Weight: Based On The Model

Powder: Based On Model

Product Description

Fruit dryer The Description
It is passing through continuous type drying equipment, used for permeability is better sheet, strip, dry granular materials, for dehydrated vegetables, Chinese medicine yinpian such as high moisture content, but does not allow high temperature material is appropriate; The series drying machine has fast drying speed, high evaporation strength, product quality advantages, the dehydration filter cake paste material, need to the granulation or made from rod can be dry after.
fruit dryer Features
To adjust the volume of air, heating temperature, stay time of raw material speed in order to obtain the best dry effect.
Configuration of equipment is flexible, can use the washing system of screen belt and the material cooling system.
Most air recycling, low height of conserve energy.
Unique air distributing device, make the hot air distribution more uniform, ensure the consistency of product quality.
Low heat source can be steam, heat conduction oil, electricity or coal (oil) hot blast stove.
fruit dryer Principle
Material by feeder evenly to the mesh belt, mesh belt usually use 12 to 60 mesh stainless steel wire mesh, drag inside the drier move by a transmission device. Dryer is composed of several units, each unit hot air circulation, independent part of tail gas by dedicated platoon is wet exhaust fan, exhaust gas is controlled by a control valve, the heat from down to up or down on by through the covered material mesh belt to complete heat and mass transfer process, take material moisture. Mesh belt to move slowly, running speed can adjust freely according to the material temperature, drying after finished products continuously into the receiving device. Cycle unit according to user needs can be equipped with flexible, cell number also can choose according to need.
fruit dryer Application
Dehydrated vegetable, granule feedstuff, monosodium glutamate, coconut, organic plastic, synthetic rubber, acrylic fiber, medicines, medicinal materials, small wood products, plastic products, electronic components ageing, curing, etc.

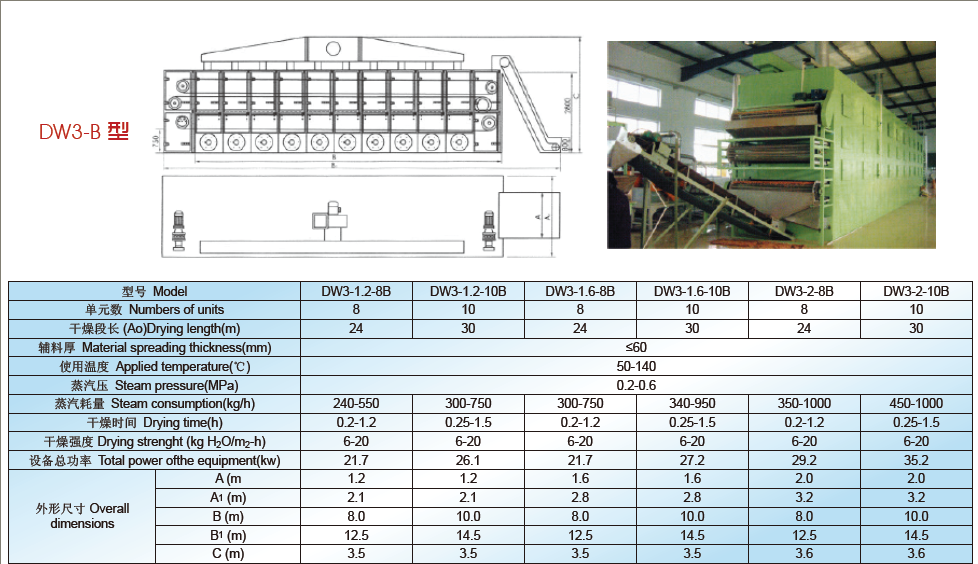

Mesh Belt Technical DataMesh Belt Technical Data1



Company information:

★Changzhou Jiafa Granulating Drying Equipment Co., LTD is a specialty enterprise engaged in a preparation technics research and equipment development.

★On the basis of [ full mixing" fluid-bed drying ands granulating, our company has successively developed [regulation flow" fluid-bed which is used for [bottom spray" and [ tangential spraying" granulating palletizing, coating.

Our product mainly serves for pharmaceutical, chemistry and food. Our product have sold to a lot countries such as USA, Switzerland, Bangladesh, Venezuela, Argentina, Spain, Australia, Ecuador, Indonesia, Egypt, Korea, Thailand, Turkey, Brazil , Vietnam, England, Russia and so on.

123

12345




OEM Service:

1) We will finish test certificates for raw material like for SS304.

2 )Also we will submit test certificates for all bought out items like motor.

3) Two copies of operational manual with English will be given at the time of dispatch of machine.

4 )All our machines guaranteed for trouble free performance for a period of 12 months from commissioning.


FAT&SAT(by client) will be executed


Installation and service after sell for free for one year, the air ticket from china to Client`s and Client`s to china will for the buyer`s account.And the buyer should supply our engineer`s room and food!
